Configuration Property Parsing Implementation

Configuration Property Parsing in rConfig V8 Pro automatically extracts specific data points from device configuration files using regular expressions. This provides an alternative to SNMP polling for collecting device properties, particularly useful when SNMP is unavailable, disabled, or when specific configuration details aren’t exposed via SNMP. Property extraction happens automatically during device backups, integrating seamlessly with rConfig’s configuration management workflow.

Understanding Configuration Property Parsing

What It Provides

Automated data extraction: Parse configuration files to extract hostnames, software versions, IP addresses, NTP servers, DNS settings, routing protocols, interface details, and any other data present in configurations.

SNMP alternative: Collect device properties when SNMP is disabled, blocked, or unsupported by extracting directly from configuration output.

Configuration-specific data: Access information that SNMP doesn’t expose, such as configured services, ACL details, routing policies, or vendor-specific settings.

Historical tracking: Track changes to extracted properties over time, providing audit trails for configuration elements.

How It Works

During device backups, rConfig’s parsing engine:

Executes configured commands and captures output
Applies defined regex patterns to command output
Extracts values matching the patterns
Stores extracted values as device properties
Logs property changes for historical tracking

Properties are linked to specific commands, so extraction only occurs when those commands execute during backups.

Prerequisites

rConfig V8 Pro installation
Devices configured and backing up successfully
Basic understanding of regular expressions (regex)
Sample configuration files for testing

Step 1: Understand Property-Command Relationship

Configuration Properties are linked to specific commands. Before creating properties, identify which commands generate the output you want to parse.

Common Commands by Vendor

Cisco IOS/IOS-XE:

show running-config - Full configuration
show version - Software/hardware details
show ip interface brief - Interface summary

Juniper JUNOS:

show configuration - Full configuration
show version - System information
show interfaces terse - Interface summary

Aruba/HP:

show running-config - Full configuration
show version - System details
show vlans - VLAN information

Critical point: Properties only extract data when their linked command executes during backups. Verify commands are included in device command groups.

Step 2: Access Configuration Properties

Navigate to Inventory → Configuration Properties in the main navigation to view the management interface. The table lists all defined properties with their linked commands, regex patterns, and active status.

Step 3: Create Your First Configuration Property

Click Add Configuration Property and configure:

Example: Extract Hostname

Configuration:

Name: Hostname (descriptive, appears in reports)
Description: Device hostname extracted from running configuration
Command: Select show running-config (or device equivalent)
Regex Pattern: /^hostname\s+(\S+)/m
Active: ✓ (enabled)

Click Save.

Understanding the Regex Pattern

/^hostname\s+(\S+)/m

Pattern breakdown:

/ - Regex delimiter (required)
^ - Start of line (with /m flag matches each line start)
hostname - Literal text to match
\s+ - One or more whitespace characters
(\S+) - Capture group: One or more non-whitespace characters (extracted value)
/m - Multiline flag (makes ^ and $ match line boundaries)

Matches: hostname router1
Extracts: router1

Step 4: Test Your Configuration Property

Before deploying to production, test regex patterns against real configuration data.

Using rConfig Live Test Feature

From Configuration Properties table, click Test next to your property
Select a device with backed-up configurations
Select the configuration file to test against
Click Config Property Test button
Review results:
- Whether pattern matched
- Extracted value(s)
- Any errors

Using External Tools

For complex patterns, use regex101.com:

Copy sample configuration section
Paste into test string field
Enter regex pattern
Set flavor to PCRE (PHP)
Verify matching and capture
Refine until correct

Testing workflow: Always test patterns externally before creating properties in rConfig, then verify using rConfig’s test feature with actual device configurations.

Step 5: Run Backup to Extract Properties

Once property is created and tested:

Navigate to Devices → [Your Device]
Run manual backup (or wait for scheduled backup)

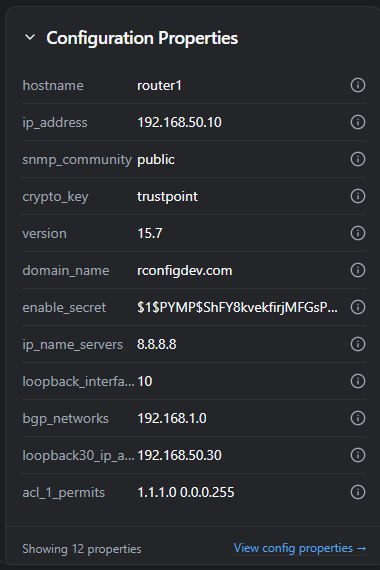

After backup completes, go to Device Details → Properties tab
Extracted property appears with its value and timestamp

Extracted properties appear in the Properties tab of the device view, showing the property name, extracted value, and the timestamp of the last successful extraction.

Step 6: View Properties in Inventory Reports

Configuration-parsed properties integrate with inventory exports:

Navigate to Devices, then click the Inventory Report button (top right)
Generate report
Download CSV/Excel
Configuration properties appear as columns alongside SNMP properties and device fields

Regex Pattern Library

Basic Extractions

Hostname

/^hostname\s+(\S+)/m

Matches: hostname router1
Extracts: router1

Software Version

/^version\s+(\S+)/m

Matches: version 15.7
Extracts: 15.7

Domain Name

/^ip domain name\s+(\S+)/m

Matches: ip domain name example.com
Extracts: example.com

Network Service Extractions

NTP Servers

/^ntp server\s+(\S+)/m

Matches: ntp server ie.pool.ntp.org
Extracts: ie.pool.ntp.org

Note: Multiple matches extract all NTP servers.

DNS Name Servers

/^ip name-server\s+(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})/m

Matches: ip name-server 8.8.8.8
Extracts: 8.8.8.8

SNMP Community String

/^snmp-server community\s+(\S+)/m

Matches: snmp-server community public RO
Extracts: public

Syslog Hosts

/^logging host\s+(\S+)/m

Matches: logging host 192.168.1.10
Extracts: 192.168.1.10

Interface Extractions

Loopback Interfaces

/^interface Loopback(\d+)/m

Matches: interface Loopback0
Extracts: 0

For full interface name:

/^interface (Loopback\d+)/m

Extracts: Loopback0

IP Addresses

/ip address\s+(\d+\.\d+\.\d+\.\d+)/

Matches: ip address 192.168.1.1 255.255.255.0
Extracts: 192.168.1.1

Routing Protocol Extractions

BGP Networks

/^\s*network\s+(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})/m

Matches: network 10.0.0.0
Extracts: 10.0.0.0

Context: Within BGP configuration sections.

OSPF Process IDs

/^router ospf\s+(\d+)/m

Matches: router ospf 100
Extracts: 100

Hardware/System Extractions

Processor Board ID

/Processor board ID (\S+)/

Matches: Processor board ID 9FM4W37HHOV
Extracts: 9FM4W37HHOV

System Image File

/System image file is "([^"]+)"/

Matches: System image file is "bootflash:packages.conf"
Extracts: bootflash:packages.conf

Configuration Register

/Configuration register is (\S+)/

Matches: Configuration register is 0x2102
Extracts: 0x2102

Memory Size

/(\d+K bytes of physical memory)/

Matches: 3984840K bytes of physical memory
Extracts: 3984840K bytes of physical memory

License Level

/License Level:\s+(\S+)/

Matches: License Level: ax
Extracts: ax

Security Extractions

Enable Secret (Hashed)

/^enable secret 5 (.+)$/m

Matches: enable secret 5 $1$PYMP$ShFY8kvekfirjMFGsPnRZ0
Extracts: $1$PYMP$ShFY8kvekfirjMFGsPnRZ0

Crypto Key Names

/^crypto pki trustpoint\s+(\S+)/m

Matches: crypto pki trustpoint myCA
Extracts: myCA

Advanced Regex Patterns

Multiple Line Matching

Extract values requiring context across multiple lines:

/^interface GigabitEthernet0\/0[\s\S]*?ip address\s+(\d+\.\d+\.\d+\.\d+)/m

Purpose: Extract IP address specifically from GigabitEthernet0/0 interface block.

Explanation: [\s\S]*? matches any characters (including newlines) non-greedily until finding the IP address pattern within that interface block.

Optional Elements

Handle configurations where elements may or may not be present:

/^ntp server\s+(\S+)(?:\s+prefer)?/m

Purpose: Extract NTP server whether or not prefer keyword is present.

Explanation: (?:\s+prefer)? is a non-capturing optional group matching the prefer keyword if present.

Named Capture Groups

For clarity in complex patterns:

/^interface\s+(?<interface>\S+)[\s\S]*?ip address\s+(?<ip>\d+\.\d+\.\d+\.\d+)/m

Purpose: Extract both interface name and IP address with clear naming.

Note: Named groups improve readability but rConfig extracts the first captured group by default.

Best Practices

Start Simple

Begin with basic single-line extractions. Test thoroughly before adding complexity. A working simple pattern is better than a broken complex one.

Test Extensively

Never deploy untested patterns. Use both regex101.com and rConfig’s test feature against real configurations before enabling properties.

Document Thoroughly

Use clear property names and detailed descriptions explaining what’s extracted and why.

Good: NTP Servers with description Extracts all configured NTP server addresses from running configuration
Bad: regex1 with no description

Handle Vendor Variations

Different vendors use different syntax for the same concept:

Cisco: ntp server 1.1.1.1
Juniper: set system ntp server 1.1.1.1

Create vendor-specific properties or flexible regex patterns accommodating variations.

Expect Multiple Matches

Some properties (NTP servers, DNS servers, interfaces) naturally return multiple values. This is expected and supported—rConfig stores all matches.

Link to Correct Commands

Verify your property links to commands actually executing on target devices. A perfect regex pattern linked to a non-existent command extracts nothing.

Monitor Extraction Success

Review logs periodically to verify properties extract successfully across your device population. Look for patterns of failures indicating regex issues or command problems.

Keep Patterns Efficient

Avoid overly complex regex causing performance issues. If a pattern takes >100ms to execute, simplify it or break into multiple properties.

Troubleshooting

Property Not Extracting Values

Symptoms: Property shows in device details but has no value or NULL value.

Diagnosis and resolution:

Regex doesn’t match configuration format
- Test regex against actual config using rConfig test feature or regex101.com
- Verify pattern matches your device’s specific output format
- Check for vendor variations in syntax
Property linked to wrong command
- Verify command assigned to property matches command actually executing
- Check device’s command group includes the required command
- Review backup logs to confirm command executed
Command not executing during backup
- Verify command exists in device’s command group
- Check command is enabled and not disabled
- Review backup logs for command execution
Regex syntax error
- Validate syntax in regex101.com with PCRE (PHP) flavor
- Check for unescaped special characters
- Verify delimiters and flags are correct
Missing multiline flag
- Add /m flag to pattern: /pattern/m
- Required when using ^ or $ anchors to match line boundaries

Debugging steps:

# View recent parsing logs
tail -f /var/www/html/rconfig8/current/storage/logs/laravel.log | grep -i "property\|parsing"

# List stored configuration files
ls -la /var/www/html/rconfig8/current/storage/app/rconfig/data/

Property Extracts Wrong Values

Symptoms: Property extracts data but it’s incorrect, incomplete, or includes unwanted text.

Possible causes and resolutions:

Regex too broad
- Add anchors: ^ for line start, $ for line end
- Make matching more specific with additional context
- Example: Change /hostname (\S+)/ to /^hostname\s+(\S+)/m
Capture group positioning wrong
- Verify parentheses capture only desired value
- Check for multiple capture groups (rConfig uses first)
- Test in regex101.com to see what’s captured
Pattern matches more than intended
- Add more specific context before/after capture
- Use word boundaries: \b
- Add negative lookaheads/lookbehinds for exclusions

Example fix:

# Too broad - matches comments too
/hostname (\S+)/

# Better - anchored to line start, requires whitespace
/^hostname\s+(\S+)/m

Multiple Unwanted Matches

Symptoms: Property extracts too many values, including unintended matches.

Resolution:

Make pattern more specific:

# Too broad
/server (\S+)/

# More specific - only NTP servers
/^ntp server\s+(\S+)/m

Add context requirements:

# Only match within specific section
/^router bgp \d+[\s\S]*?network\s+(\d+\.\d+\.\d+\.\d+)/m

Use negative lookbehind/lookahead:

# Match IP but not if followed by "secondary"
/ip address\s+(\d+\.\d+\.\d+\.\d+)(?!\s+\d+\.\d+\.\d+\.\d+\s+secondary)/

Performance Issues

Symptoms: Backups slow down significantly after adding properties, or timeouts occur.

Possible causes and resolutions:

Overly complex regex with catastrophic backtracking
- Simplify pattern
- Avoid nested quantifiers: (a+)+
- Use possessive quantifiers: ++ or atomic groups: (?>...)
- Test pattern performance in regex101.com debugger
Too many properties per command
- Limit to 10-15 properties per command
- Combine related extractions into fewer, more efficient patterns
- Prioritize essential properties
Very large configuration files
- Consider extracting only from specific sections
- Use more targeted patterns rather than .* or [\s\S]*

Viewing and Managing Properties

Device Details Panel

Access extracted properties for specific devices:

Navigate to Devices → [Device Name]
Click Properties tab
View all SNMP-polled and configuration-parsed properties with values and timestamps

Configuration Properties Management

Manage all property definitions:

Navigate to Inventory → Configuration Properties
View, edit, delete, or test properties
Enable/disable properties without deleting
Clone properties for creating variations

The management table provides edit, delete, test, enable/disable, and clone actions for each property definition.

Integration with Other Features

Device Inventory Reports

Configuration properties appear in inventory exports alongside:

Device core fields (hostname, IP, vendor, model)
SNMP-polled properties
Custom fields

Export workflow:

Navigate to Devices → Inventory Report
Select devices or groups
Generate and download report
All properties appear as columns

Activity Logs

All property extraction events are logged:

Navigate to System Settings → Monitoring & Debugging → Application Logs
Filter by device name or property name
Review extraction success/failure and value changes
Export logs for analysis

Practical Use Cases

Compliance Validation

Goal: Verify all devices use approved NTP servers.

Implementation:

Property Name: NTP Servers
Regex: /^ntp server\s+(\S+)/m
Workflow: Export inventory, filter for devices with non-approved NTP servers, generate remediation list

Version Auditing

Goal: Identify devices running outdated software.

Implementation:

Property Name: Software Version
Regex: /^version\s+(\S+)/m
Workflow: Export inventory, identify devices below minimum version, prioritize upgrades

DNS Consistency

Goal: Ensure all devices use corporate DNS servers.

Implementation:

Property Name: DNS Name Servers
Regex: /^ip name-server\s+(\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})/m
Workflow: Verify all devices list approved DNS servers, identify non-compliant configurations

Security Audit

Goal: Track which devices have enable secrets configured.

Implementation:

Property Name: Enable Secret Configured
Regex: /^enable secret/m
Workflow: Identify devices missing enable secrets, ensure password policies enforced

What’s next

Configuration Property Parsing Concepts - Understanding when to use config parsing vs SNMP polling
SNMP Polling Concepts - Complementary property collection method
Commands - Configuring device commands for property extraction

Quick Reference

Common Regex Elements

Pattern	Meaning
`^`	Start of line (with `/m` flag)
`$`	End of line (with `/m` flag)
`\s`	Whitespace character
`\S`	Non-whitespace character
`\d`	Digit (0-9)
`+`	One or more of preceding
`*`	Zero or more of preceding
`?`	Zero or one of preceding (optional)
`()`	Capture group (extracts value)
`(?:)`	Non-capturing group
`.`	Any character except newline
`[\s\S]`	Any character including newline
`/m`	Multiline flag
`/i`	Case-insensitive flag

Testing Workflow

Identify target data in sample configuration
Write regex pattern
Test in regex101.com (PCRE/PHP flavor)
Create property in rConfig
Test using rConfig test feature
Run backup on test device
Verify extraction in device properties
Deploy to production devices

Property Creation Checklist

Clear, descriptive name
Detailed description of extraction purpose
Correct command linkage
Valid regex syntax tested in regex101.com
Pattern tested with rConfig test feature
Multiline flag (/m) added if using ^ or $
Capture group positioned correctly
Property marked as active
Tested with backup on actual device
