V2 UI Reference: Debug Console

The Debug Console is a modal dialog that runs the V2 pipeline in the foreground and streams the native php artisan rconfig:integration-v2-run stdout/stderr straight into the UI. It is the right tool for any time you need to watch a run instead of waiting for Run Insights to settle, or when you need a copy-pasteable log to attach to a support ticket.

The Debug Console is the same on every V2 driver.

When to Use This

Open the Debug Console when you need to watch a run happen live, reproduce an intermittent failure, or capture a clean log for a support ticket. For routine scheduled syncing, use a Scheduled Task or the action bar’s Full Sync button instead: the console runs in the foreground and ties up the browser tab for the duration.

It runs in the foreground

The Debug Console invokes the Artisan command synchronously on the rConfig server (not on the queue). For long Apply runs against large inventories, prefer the Detail page action bar’s Full Sync button: it dispatches via the queue and survives a page refresh. Use the Debug Console for diagnosing failures, not for routine production sync.

Prerequisites

• A saved V2 integration instance (the Run Integration Debug button stays disabled until the instance has a saved configuration).
• setting.view permission to open the console, setting.create/setting.update to start a run.

Opening the Console

1. Click Open Debug Console in the Detail page action bar. The button has a subtle shimmer to mark it as a power-user control.

2. The dialog opens with the current driver pre-selected. The title bar reads:

   Integration Debug Console · Driver Display Name

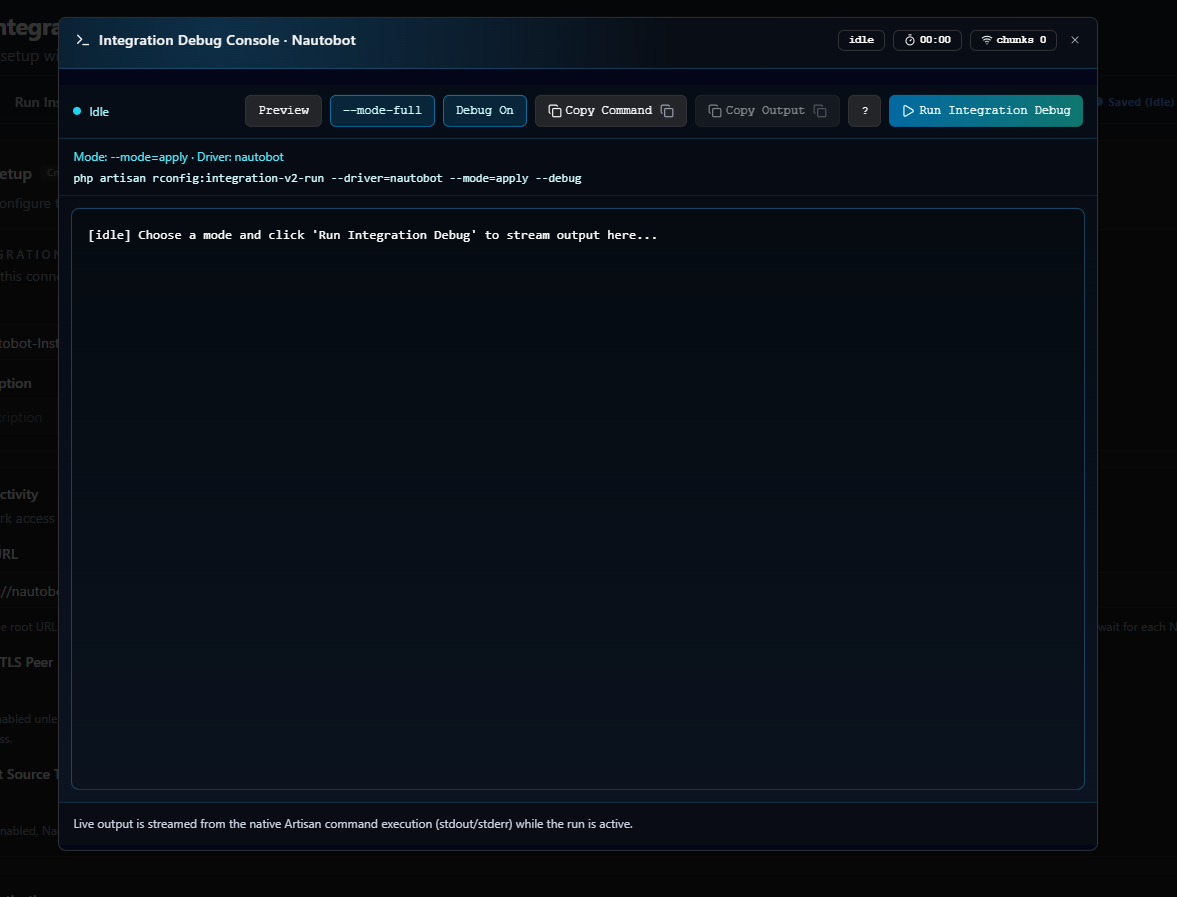

Anatomy of the Dialog

Status Strip

The top of the dialog shows three live indicators:

• Status: idle, starting, running, completed, or failed.
• Elapsed: wall-clock time since the run started, formatted mm:ss.
• Chunks: number of SSE stream chunks received so far. A climbing chunk count without new output is a sign the run is mid-stage but not silent.

Beside the indicators sits a phase label with a pulsing dot. Unlike Run Insights, this label tracks the console’s own connection lifecycle rather than the pipeline stage: Idle, Starting native debug run, Streaming native command output, then Run completed or Run ended with issues.

Mode & Debug Controls

Three toggles control what command will be run:

Control	Effect
Preview	Selects --mode=preview: the run stops after decide, no writes.
--mode-full	Selects --mode=apply: the run executes through apply, writing to devices. The button is labelled --mode-full rather than “Apply” in the current build.
Debug On / Off	Toggles --debug. With Debug On, every stage’s elapsed_ms and metrics are printed as the run executes.

Underneath, the command line that will be executed is rendered verbatim, e.g.:

php artisan rconfig:integration-v2-run --driver=zabbix --mode=preview --debug

The console always renders the command with --driver=<driver_key>, never a positional instance ID. This is the exact string you can also run from a terminal: handy when the dialog is failing for environmental reasons (queue worker missing, PHP CLI permission issues) and you want to bypass the UI.

Action Buttons

Button	What it does
Run Integration Debug	Kicks off the run. Disabled until the instance has a saved configuration; label changes to Running for the duration of the run.
Copy Command	Copies the rendered CLI command to the clipboard.
Copy Output	Copies the entire output buffer captured so far.
? (Help)	Toggles the Integration Decision Helper panel (see below).

Output Console

The bottom panel is a fixed-height monospace ScrollArea that renders streamed output line-by-line. While the run is active, a terminal-style cursor pulses on the trailing line. When idle the panel shows:

[idle] Choose a mode and click 'Run Integration Debug' to stream output here...

Lines are colour-tinted by source: stage headers, stage summaries, metrics lines, the “Debug mode enabled” banner, and decision-reason lines each get their own colour so they stand out from regular stdout.

Integration Decision Helper

Click ? to reveal the Integration Decision Helper panel: a small reference of the decision reason codes the reconciliation stage emits. The same codes appear in the Logs tab on every decision row and on each Problem Devices row that requires review.

Reason code	Plain-English meaning	What happens on Apply
LINK_FOUND_BY_EXTERNAL_ID	Update an already linked device: the candidate’s upstream external ID matched an existing integration_device_links row from a previous run, so this is the same device.	The matched rConfig device is updated. No human review needed.
MEDIUM_MATCH_REQUIRES_REVIEW	One plausible existing device matched, so manual review is required: the candidate’s hostname + primary IP match a unique device, but not strongly enough to auto-link.	No write. Candidate appears in Problem Devices for an operator to confirm or reject.
AMBIGUOUS_MATCH_MULTIPLE_DEVICES	Multiple possible matches, so manual review is required: more than one rConfig device fits the candidate’s identity fingerprint, so V2 refuses to guess.	No write. Candidate appears in Problem Devices; operator picks the correct target.
NO_MATCH_CREATE_CANDIDATE	No match was found, so rConfig plans to create a new device on apply: the normal “this upstream host did not match any existing rConfig device, so create a new one” outcome.	A new rConfig device is created and linked to the upstream record.

LINK_FOUND_BY_EXTERNAL_ID and NO_MATCH_CREATE_CANDIDATE are the steady-state codes you want: they cover “update an existing device” and “create a new one” respectively. MEDIUM_MATCH_REQUIRES_REVIEW and AMBIGUOUS_MATCH_MULTIPLE_DEVICES always defer the decision to a human; chase them down in Problem Devices so they don’t accumulate.

Footer

A short footer line confirms what you’re watching:

Live output is streamed from the native Artisan command execution (stdout/stderr) while the run is active.

What the Streamed Output Looks Like

Output is the native Artisan output from IntegrationV2RunCommand, streamed line-by-line as it’s produced. With debug on, a Preview run against Zabbix looks roughly like this:

[rConfig] Running native CLI command in preview mode with debug ON.
Debug mode enabled.
Run context: {"run_id":214,"instance_id":3,"source_key":"zabbix","mode":"preview","queued":false,"task_id":null}
Running V2 integration run #214 inline (no queue).
Stage [validate_setup]
Marking stage started...
Executing stage handler...
Stage completed.
elapsed_ms=312
metrics={"connection":"ok","credentials":"ok"}
Stage [extract]
Marking stage started...
Executing stage handler...
Stage completed.
elapsed_ms=1734
metrics={"processed":128,"pagination_type":"offset","page_count":3}
...
Preview run #214 completed and is ready for review.
Debug Summary
Run #214 | mode=preview | status=preview_ready | stage=decide
Stages:
- validate_setup [completed]: 1
- extract [completed]: 1
- canonicalize [completed]: 1
- reconcile [completed]: 1
- decide [completed]: 1
Extracted source records: 128
Canonical candidates: valid=124, invalid=4
Reconciliation tiers: strong=110, medium=10, ambiguous=2, none=2
Decisions: create=12, update=110, skip=4, conflict=2
Top decision reasons:
- LINK_FOUND_BY_EXTERNAL_ID: 108
- MEDIUM_MATCH_REQUIRES_REVIEW: 8
Open conflicts: 10

The “Debug Summary” block always renders at the end of a run, whether or not Debug On is toggled: the per-stage elapsed_ms and metrics lines in the middle of the run are what’s gated behind Debug On. When a stage fails instead, the exception message (and, when Debug On, the chained exception trace with file/line numbers) prints inline: copy that block straight into a support ticket.

When to Use Each Run Mode

Goal	Recommended path
Confirm filters return the right hosts	Extract Preview in the action bar: much lighter than the console.
Walk the full pipeline once, watch it happen, see exactly where it stops	Debug Console, Preview, debug on.
Routine, scheduled production sync	Action-bar Full Sync (queued) or a Scheduled Task.
Reproduce a failure that only shows up under load	Debug Console, --mode-full, debug on, capture the output.
Capture a clean log to attach to a support ticket	Debug Console with Copy Output after the run.

The console run is a real run

A Debug Console run creates a real IntegrationRun row and persists stage logs the same way a queued run does: in apply mode (--mode-full) it writes to devices exactly like Full Sync. It is fully visible in Run Insights and Logs afterwards: it is not a parallel sandbox.

Common Gotchas

Common gotchas

• The Apply toggle is labelled --mode-full, not “Apply”: don’t go looking for a button that says “Apply”.
• Closing the dialog tears down the stream and resets the console’s own status/output display. The Artisan command is invoked synchronously within that same HTTP request, so unlike a queued Full Sync, there’s no guarantee the run keeps executing after you close the tab: if you need a run to reliably survive a closed browser, use the action bar’s queued Full Sync or a Scheduled Task instead.
• Reopening the console always starts from idle: it does not resume watching a run you previously closed. Check Run Insights to see whether that earlier run actually finished.
• The console runs in the foreground on the web server process. A large inventory in apply mode can tie up that PHP worker for the full run duration.
