PRTG Device Sync V2: End-to-End Setup in rConfig V8.2.0

The V2 PRTG driver pulls device inventory from a PRTG Network Monitor server using its API v2 REST endpoints and feeds it through the unified V2 pipeline. This guide follows the same model as the Statseeker V2 setup — only the Setup tab fields and upstream-side conventions are different.

Lab tested — customer field testing required

The PRTG V2 driver is lab tested for the V8.2.0 release (prtg.schema.php → verified.status = lab_tested). It has been validated against rConfig’s lab environment but is awaiting field validation in customer environments. If you run it in production, please share findings with rConfig support so the status can be promoted.

Marketing overview on rconfig.com

See the PRTG integration page on rconfig.com for the platform-specific overview, or browse all rConfig integrations.

Platform	rConfig V8 Support	Auth supported	V2 Status
PRTG	V8.2.0+	API token, or session (user + pass / passhash)	Lab tested

Interactive demo

Mental Model: End Goal First

The point of setting up a V2 integration is to land in a steady state where rConfig’s device inventory is continuously reconciled against PRTG on a schedule, with no operator in the loop. That end state looks like this:

A Scheduled Task of type Integration V2 Job runs the PRTG instance in Apply mode on a cron, e.g. nightly. It runs the same six-stage pipeline you’ll run interactively in this guide, writes any create and update decisions to rConfig, leaves any conflicts or ambiguous matches in Problem Devices for review, and notifies you on completion.

To get there, you walk a one-time setup and a sanity-check loop:

1. Create the integration instance — PRTG connectivity and auth in the Setup tab. Validate with Test Connection.
2. Set up the Device Profiles the synced devices will inherit from. This happens under Inventory → Device Profiles, not in the integration itself.
3. Run an Extract Preview to confirm filters return the right PRTG devices.
4. Run a Sync Preview to walk the full pipeline (canonicalize → reconcile → decide) without writing.
5. Run a Full Sync (Apply) once the preview’s decisions look right.
6. Schedule the integration to run on a cron from the rConfig scheduler.

Prerequisites

PRTG:

• A PRTG Network Monitor server with API v2 enabled. API v2 listens on a separate port from the main web UI — by default 1616. Confirm this in your PRTG admin settings (System Administration → Core & Probes).
• An API key (preferred) or a service-user username + password (or legacy passhash) with read access to devices.
• Network connectivity from rConfig to PRTG on the API v2 port.
• Devices labelled with PRTG tags that match your rConfig Device Profile slugs (or a default profile set on the instance).

rConfig V8.2.0+:

• Administrator access
• A clear answer to: which Device Profile (vendor, category, template, credential set, optional SNMP group / Vector agent) every synced device should adopt by default

Step 1 — Create the Integration Instance (Setup Tab)

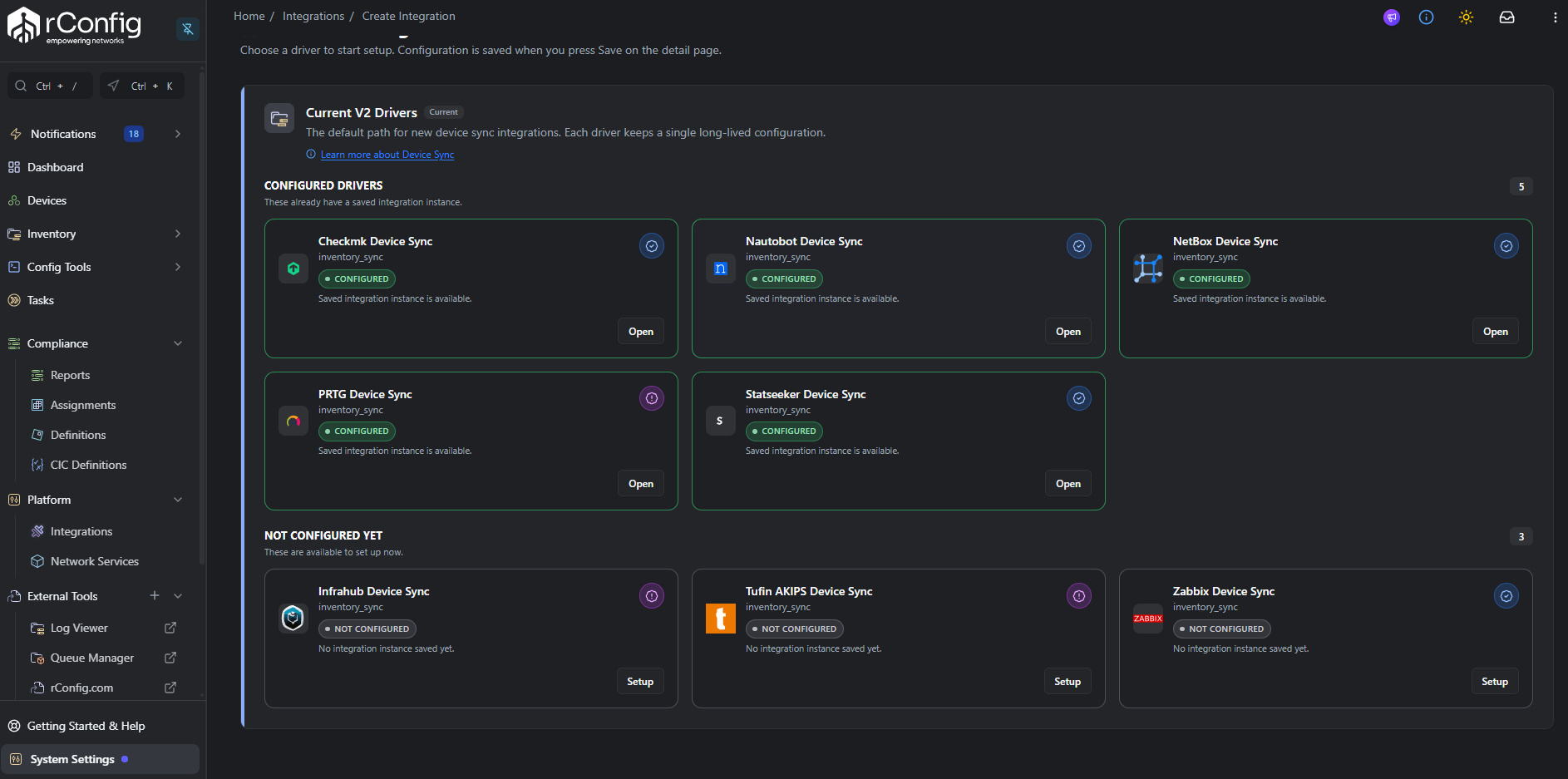

1.1 Open the V2 driver picker

Navigate to Settings → Integrations, then click New V2 Integration.

The PRTG card carries a Lab tested badge — click it to open the Setup tab.

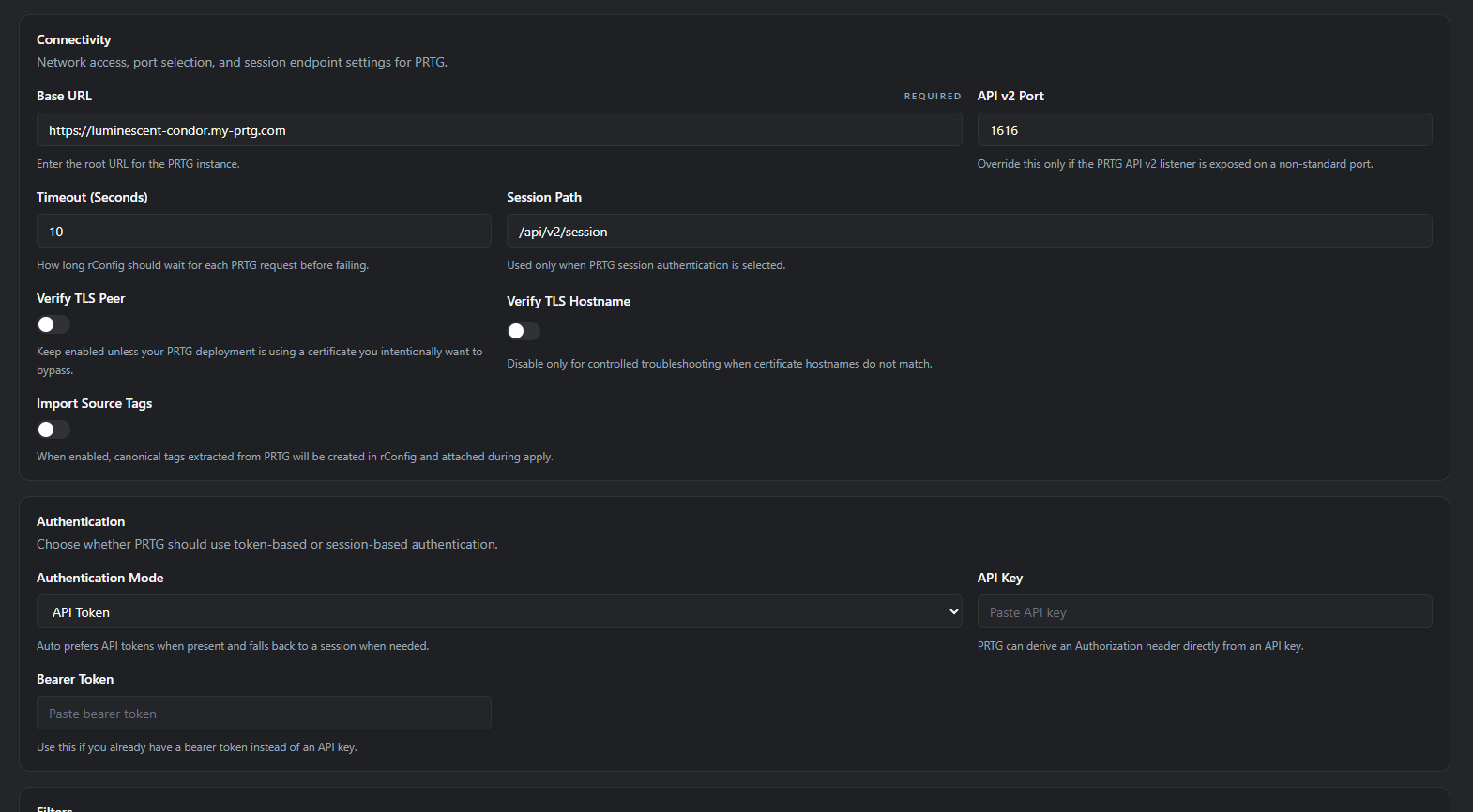

1.2 Fill in the schema-driven Setup tab

The form is rendered from prtg.schema.php and is laid out in two sections.

Connectivity

Field	Default	Notes
Base URL	required	Root of the PRTG server, e.g. https://prtg.example.com. The API v2 port is appended automatically if not present.
API v2 Port	1616	The port PRTG exposes API v2 on. Override only if your PRTG admin has changed it.
Session Path	/api/v2/session	Auth/session endpoint. Rarely changed.
Timeout (Seconds)	30	HTTP request timeout. Range 1–120.
Verify TLS Peer	on	Leave on for production. Disable only for self-signed labs.
Verify TLS Hostname	on	Leave on for production. Disable only for hostname mismatches in labs.
Import Source Tags	off	When on, PRTG device tags become canonical tags in rConfig and are attached on Apply.

Separate port

PRTG’s REST API v2 is not on the same port as the web UI. If your Base URL is https://prtg.example.com, the driver will call https://prtg.example.com:1616/api/v2/session for auth and https://prtg.example.com:1616/api/v2/devices for extraction. Make sure your firewall allows rConfig out to that port.

Authentication — pick an Auth Mode:

• Auto (recommended) — tries API token first, falls back to session credentials.
• API Token — supply an API Key (or Bearer Token). Sent as api-key, Bearer, or Api-Key header — the driver tries each in turn.
• Session — supply Username + Password, or Username + Passhash (legacy MD5). The driver POSTs to /api/v2/session to exchange these for a bearer token.

Passhash is legacy

Passhash is supported for compatibility with older PRTG deployments where only the user’s MD5 password hash is exposed (e.g. via the legacy “My Account” page). Where possible, switch to API key auth — it is simpler and more secure.

1.3 Test the connection

Click Test Connection in the action bar. The driver hits GET /api/v2/session with the configured auth.

Common failures:

What you see	Most likely fix
Connection refused / timeout	Wrong Base URL, wrong API v2 Port, or firewall blocking the API v2 port (default 1616).
SSL / certificate error	Self-signed cert — toggle Verify TLS Peer / Hostname off (lab only).
401/403	API key invalid, or username/password/passhash wrong. Try the alternate Auth Mode.
404 from /api/v2/session	API v2 not enabled on the PRTG server. Enable in PRTG System Administration and restart the core.

1.4 Save

Click Save. Move to Step 2 before running a preview.

Step 2 — Set Up Device Profiles (Inventory)

Device Profiles live outside the integration. The PRTG V2 driver matches the upstream record’s tag value to the Device Profile slug.

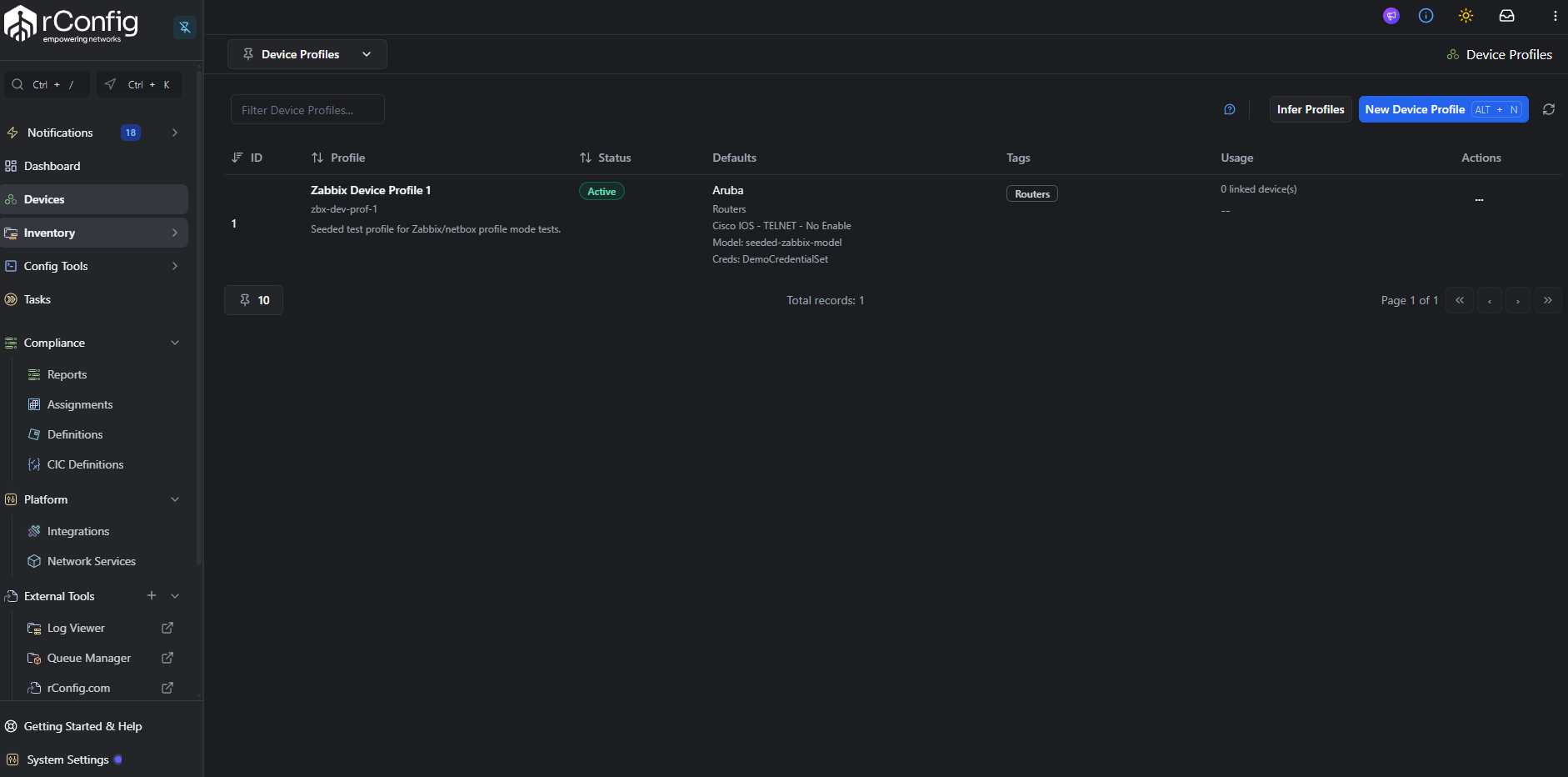

2.1 Open the Device Profiles page

Navigate to Inventory → Device Profiles.

2.2 Create a Device Profile per device class

For each device class you want to sync, click New Device Profile and fill in:

• Name — human-readable.
• Slug — the value PRTG tags will reference.
• Vendor, Category, Template, Credential set — standard rConfig device classification.
• SNMP group, Vector agent, default tags, default model / prompt patterns — optional.

2.3 Tag devices on the PRTG side

The PRTG V2 driver reads the profile slug from basic.tags (and tags as a fallback) on each device record. PRTG stores tags as a single space/comma/semicolon-delimited string per device — the driver splits the string and looks for a token that matches an active Device Profile slug.

In PRTG: open the device, click Settings, scroll to Tags, and add the slug (space-delimited from any existing tags):

cisco-ios-core network production

If you cannot tag every device, set a default profile on the PRTG integration instance so untagged devices inherit a sensible fallback.

Sparse canonical mapping

The PRTG driver populates hostname, primary IP, and tags only — it does not surface vendor, model or serial because those are not first-class fields in PRTG device objects. If you need vendor/model/serial in rConfig, set them via the Device Profile defaults.

Step 3 — Run an Extract Preview

Click Extract Preview in the action bar (amber download icon).

PRTG supports filters on:

• name (operators: equals, contains, in)
• basic.tags (operators: equals, contains, in)
• status (operators: equals, in)

Open a row’s Details hover to see the full raw payload — confirm name, the chosen IP field (basic.host or basic.hostv6) and the tag value used for profile resolution are all present.

For the full anatomy of this tab, see the Extract Preview Tab reference.

Step 4 — Run a Sync Preview

Click Preview Sync in the action bar (sky icon). Sync Preview runs the complete pipeline through decide and stops without writing.

Switch to the Run Insights tab to inspect the result.

For PRTG the most-watched stage metrics are:

• extract.items_extracted — should match the Extract Preview count (within filter scope).
• canonicalize.invalid — non-zero usually means a device has no basic.host set, or no tag matches an active Device Profile.
• reconcile.ambiguous — non-zero means more than one rConfig device matches the same PRTG device.

If Open Problems is greater than zero, switch to the Problem Devices tab and triage the rows.

For the full anatomy of these tabs, see the Run Insights Tab reference and Problem Devices Tab reference.

Step 5 — Run a Full Sync (Apply)

When the Sync Preview decisions look correct and Open Problems is at an acceptable level, click Full Sync in the action bar (indigo icon).

Full Sync re-runs the full pipeline and finishes by executing the apply stage:

1. Creates new devices for each decision = create.
2. Updates existing devices for each decision = update.
3. Assigns the resolved Device Profile to each affected device.
4. Syncs canonical tags onto the device when Import Source Tags was on at Setup.
5. Updates integration_device_links (first_seen, last_seen).
6. Schedules an initial configuration backup for newly created devices.

Re-check Problem Devices after Apply.

Step 6 — The Debug Console

For any of the runs above, you can swap the action-bar button for the Open Debug Console button (shimmer icon).

For the full anatomy of the dialog, see the Debug Console reference.

Step 7 — Schedule the Sync

Once a manual Full Sync completes cleanly, navigate to Scheduled Tasks → Add Task → Integration V2 Job, pick the PRTG instance, choose Apply mode, and set the cron schedule.

CLI Reference

# Sync Preview (does not write)
php /var/www/html/rconfig8/current/artisan rconfig:integration-v2-run --driver=prtg --mode=preview

# Full Sync (Apply) by explicit instance ID, with debug output
php artisan rconfig:integration-v2-run 18 --mode=apply --debug

# Queue an async run
php artisan rconfig:integration-v2-run 18 --mode=apply --queue

Driver Reference

PRTG fields the driver reads

Canonical field	PRTG payload paths checked, in order
External ID	id
Hostname	name → basic.host
Primary IP	basic.host → basic.hostv6
Serial	not populated
Vendor	not populated
Model	not populated
Tags / Profile	basic.tags → tags (space/comma/semi-delimited string, split on demand)

Reconciliation policy

• Strong match — by instance_link_external_id only (no serial available).
• Medium match — hostname and primary IP both unique in rConfig.
• No automatic medium-match auto-relink, no cross-family matching.

Missing upstream policy

The default mode is disable_link_only — when a previously-synced PRTG device disappears from the upstream, rConfig disables the integration_device_links row but leaves the device intact.

Troubleshooting

• Connection refused on the API v2 port. Confirm PRTG API v2 is enabled and the port (default 1616) is open from rConfig. Test from a shell: curl -k https://prtg.example.com:1616/api/v2/session.
• API key auth fails but session works. PRTG accepts API keys via three different header forms. The driver tries api-key, Bearer and Api-Key in turn — if all three fail, your API key was likely revoked or scoped to a user without device read access. Generate a new key.
• Session auth fails. If using passhash, regenerate it from PRTG (the passhash changes when the password changes). If using password, confirm the user can log in to the PRTG web UI.
• Extract returns zero devices. Re-check name / basic.tags / status filters. The PRTG API filters Down devices the same as Up ones, so status filters can be useful to scope.
• Profile resolution fails. PRTG tags are a single delimited string — confirm your profile slug appears as a discrete token in basic.tags. Check the Extract Preview row’s Details to see exactly what the upstream returned.
• Reconciliation produces ambiguous matches. Two rConfig devices share the same hostname or primary IP. Resolve in Problem Devices by picking the correct target.
