Device Sync V2 Overview

Device Sync V2 Overview: Unified Network Device Inventory Pipeline in rConfig V8.2.0

Device Sync V2 is the next-generation integration engine introduced in rConfig V8.2.0. It replaces the per-driver legacy commands and ad-hoc setup screens with a single, schema-driven pipeline that supports preview runs, multi-tier reconciliation, Device Profiles, and a growing catalog of upstream platforms — all from one consistent UI and CLI.

Marketing overview on rconfig.com

For a high-level overview of rConfig integrations including customer use-cases and feature highlights, see rconfig.com/integrations.

Looking for the legacy V1 docs?

The original Device Sync docs are still available under Device Sync → legacy/ and remain supported through the V8.2.x release line. From V8.2.0 onward, V1 is deprecated and all new work should target V2. Legacy V1 users will be supported with bug fixes and critical updates through the end of the V8.2.x lifecycle, but no new features or drivers will be added to V1.

Why V2

V1 device sync worked, but each driver shipped its own command, its own config form, its own staging table behavior, and its own quirks for tags, filters and reconciliation. V2 collapses all of that into a single pipeline:

• One CLI command for every driver — rconfig:integration-v2-run
• One UI, dynamically rendered per driver from a JSON schema
• One pipeline of well-defined stages — validate_setup → extract → canonicalize → reconcile → decide → apply
• One reconciliation model with strong / medium / ambiguous / none match tiers, authority tracing and conflict tracking
• Native Device Profiles so devices inherit template, vendor, category, credentials and SNMP settings from a reusable profile instead of repeating per-host tags

Supported Upstream Platforms

V8.2.0 ships eight V2 drivers. Field-tested drivers have been validated against live customer environments; lab-tested drivers have been validated in the rConfig lab and are awaiting field validation by customers.

Platform	Status	Notes
Zabbix	Field tested	Zabbix V2 Setup
Nautobot	Field tested	Nautobot V2 Setup
NetBox	Field tested	NetBox V2 Setup
Statseeker	Field tested	Statseeker V2 Setup
Checkmk	Field tested	Checkmk V2 Setup
PRTG	Lab tested	PRTG V2 Setup (customer field testing required)
Akips	Lab tested	Tufin AKIPS V2 Setup (customer field testing required)
Infrahub	Lab tested	Infrahub V2 Setup (customer field testing required)

Note

V2 drivers are added to the platform via the registry and database-backed integration_definitions table. Run php artisan rconfig:integration-v2-sync-definitions after upgrades to refresh the available driver list.

V2 vs V1 at a Glance

Capability	V1 (Legacy)	V2 (V8.2.0+)
CLI	One command per driver (rconfig:integration-zabbix, …)	Single command — rconfig:integration-v2-run
UI	Hardcoded per driver	Schema-driven, same form layout for every driver
Pipeline stages	Ad-hoc per driver	Six well-defined stages with per-stage metrics and errors
Run modes	Assessment / Deployment	Preview / Apply (preview is fully reconciled, dry-run)
Reconciliation	Basic hostname/IP	Strong / Medium / Ambiguous / None tiers + authority tracing
Device mapping	Per-host tags (rconfig::template, etc.)	Device Profiles + optional per-host overrides
Filter testing	Run full extract	Extract Preview — test filters without committing
Async execution	Inline only	Inline or queued, fine-grained per-stage jobs
Conflict handling	None	First-class conflict records with status & manual resolution
Missing upstream	Basic disable	Policy-driven (disable link, unlink, ignore, …)
Audit trail	Flat logs	Per-run stats_json, per-stage error_payload, policy version pinned

How a V2 Run Works

Every V2 run progresses through the same six stages, regardless of driver:

1. validate_setup — Test connectivity to the upstream API and validate credentials. Fails fast if SSL, auth or routing is broken.
2. extract — Pull raw device records from the upstream API using the configured filters. Each record is stored in integration_source_records for replay and audit.
3. canonicalize — Normalize the upstream payload into rConfig’s canonical device shape (hostname, primary IP, serial, vendor, model, tags, device profile input). Validation errors are surfaced per-record.
4. reconcile — Match each canonical candidate against existing devices using identity fingerprints (external ID, hostname + primary IP, serial). Returns a match tier (strong, medium, ambiguous, none) and an authority trace.
5. decide — Combine the reconciliation result with instance policies (reconciliation policy, missing-upstream policy, profile policy) to produce a final action per device: create, update, skip, or conflict.
6. apply — In apply mode only, commit decisions: create or update devices, assign Device Profiles, sync tags, and update integration_device_links. Preview runs stop after decide.

Preview runs let you walk the entire decision matrix without touching production data, then review and re-run in apply mode when you’re satisfied.

Device Profiles (New in V8.2.0)

Device Profiles are the V2 way to apply rConfig configuration metadata to imported devices. Instead of tagging every upstream host with rconfig::template, rconfig::credentialset, rconfig::vendor, etc., you create a profile once in rConfig and reference it from upstream.

A profile bundles:

• Device template
• Vendor and category
• Credential set
• SNMP group (optional)
• Vector agent (optional, requires Vector Server)
• Default tags
• Default model and prompt patterns

Upstream platforms reference a profile by slug:

• Zabbix tag: rconfig::device_profile = <profile-slug>
• Nautobot custom field: rconfig_device_profile = <profile-slug>
• NetBox custom field: rconfig_device_profile = <profile-slug>

When profile mode is active, profile values become authoritative defaults and rconfig::tag remains additive for per-host tags.

Note

Legacy per-host mapping tags are still parsed in V2 for backward compatibility, but Device Profiles are the recommended path. See Migrating from Legacy Tags to Device Profiles in each driver guide.

Setting Up a V2 Integration

The high-level flow is the same for every driver:

1. Configure upstream: create an API user / token with read access to devices and tags.
2. Tag or label devices: either apply a rconfig::device_profile reference, or apply legacy mapping tags.

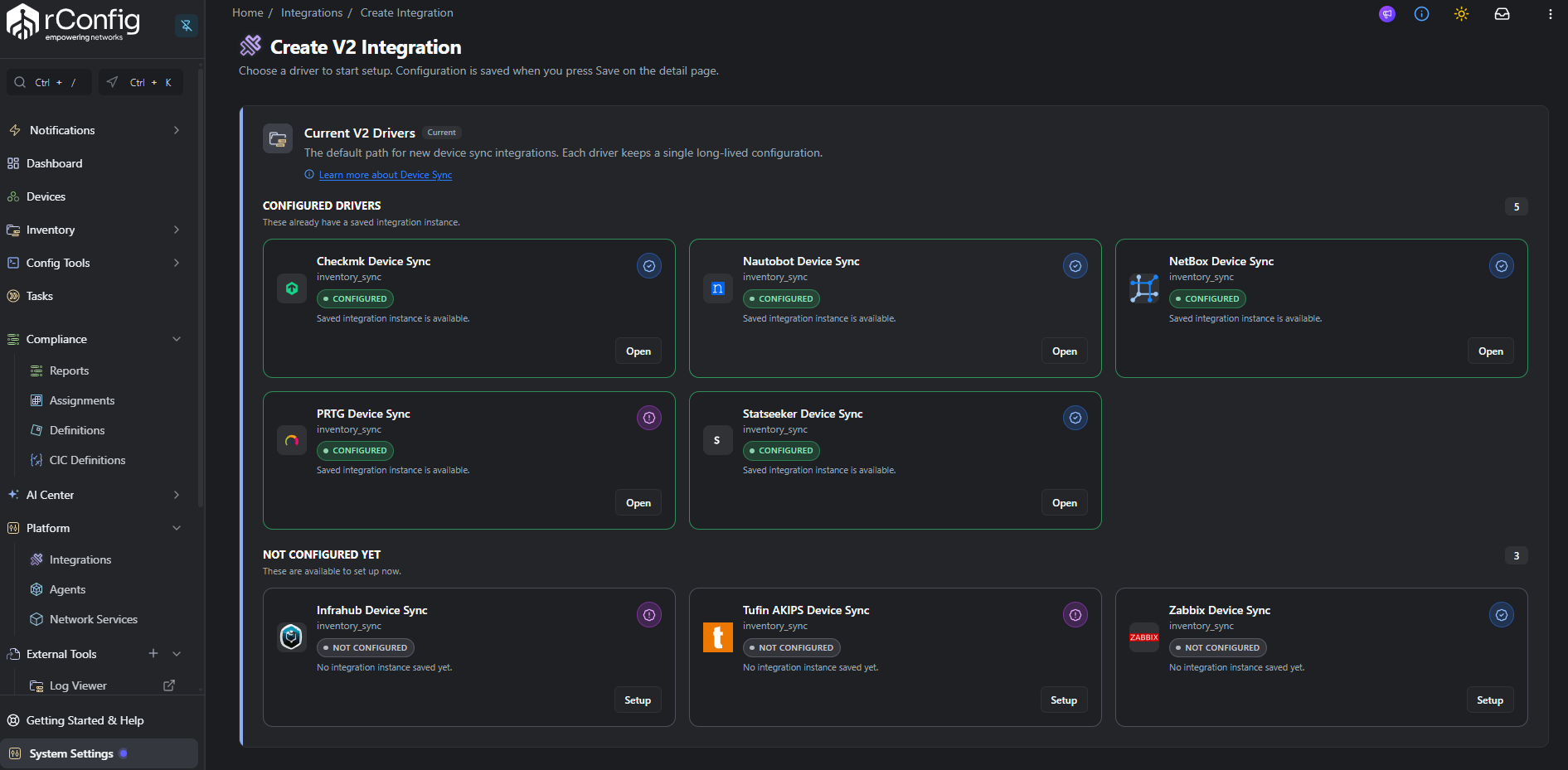

3. Add the integration in rConfig: Settings → Integrations (V2) → New → pick a driver.

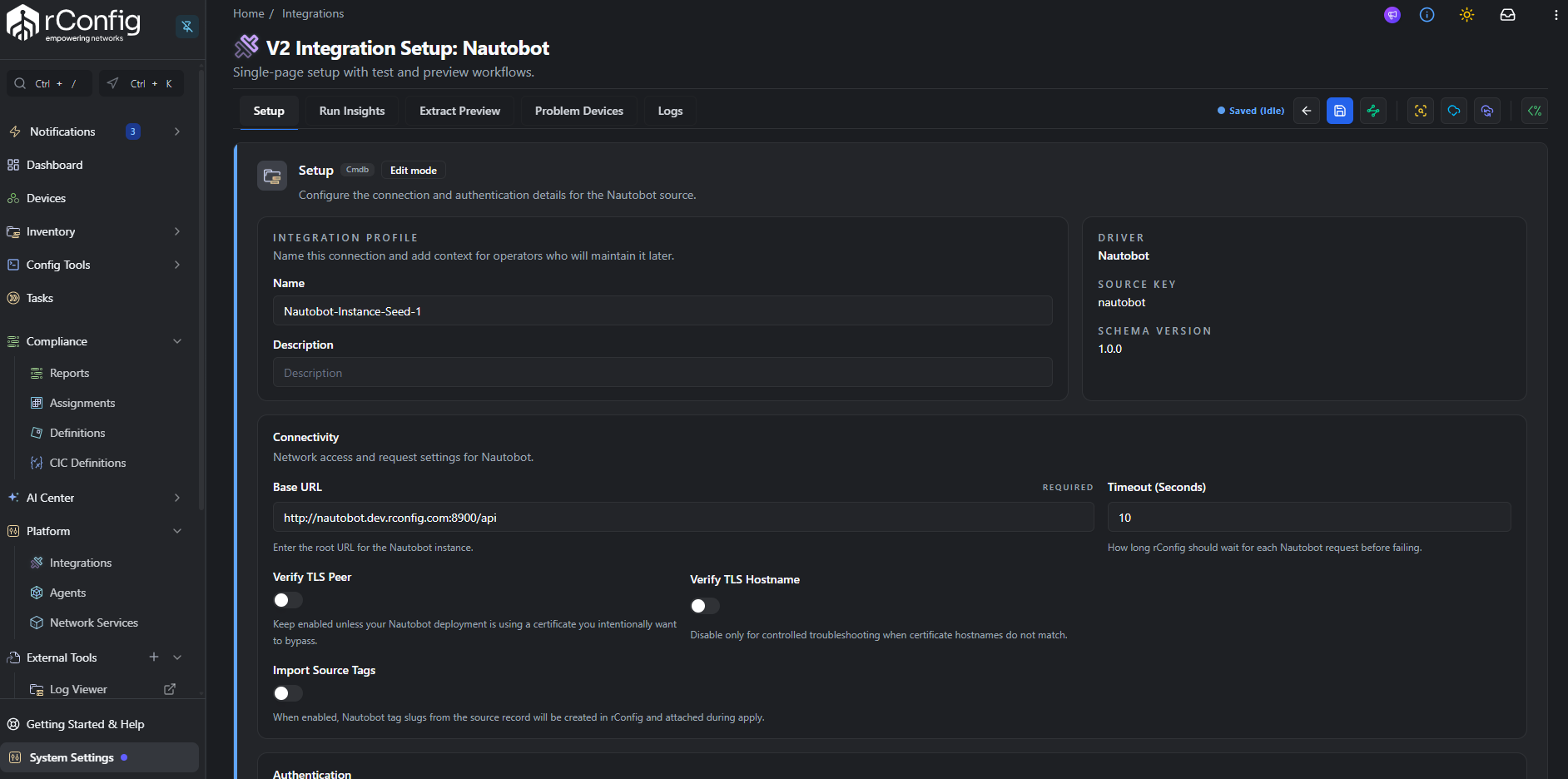

4. Fill in connection details: base URL, credentials, SSL, filters. The form is generated from the driver’s schema.
5. Test connection and Test credentials.
6. Run an Extract Preview to verify the configured filters return the expected hosts.
7. Run a Preview to walk the full pipeline without committing.
8. Review the run summary: extracted records, validation status, reconciliation tiers, decisions, conflicts.
9. Run in Apply mode to commit changes.
10. Schedule recurring runs via Scheduled Tasks.

Each driver page covers the upstream-specific steps for that flow.

CLI Commands

Run an integration

# Preview run (default — does not write to devices)
php /var/www/html/rconfig8/current/artisan rconfig:integration-v2-run <instance_id>

# Apply run — commits decisions to production
php artisan rconfig:integration-v2-run <instance_id> --mode=apply

# Run by driver key when you only have one instance per driver
php artisan rconfig:integration-v2-run --driver=zabbix --mode=preview

# Verbose debug output, queued asynchronously
php artisan rconfig:integration-v2-run <instance_id> --mode=apply --debug --queue

Option	Shortcut	Description
--driver=		Source key (e.g. zabbix, nautobot, netbox). Alternative to instance ID
--mode=		preview (default) or apply
--trigger=	-t	Trigger type for audit metadata (default manual)
--debug	-d	Verbose stage timings, metrics and a debug summary at the end of the run
--task-id=		Associate the run with a Scheduled Task for completion notifications
--queue		Dispatch the run to the queue instead of executing inline

Refresh driver definitions

After upgrading rConfig or installing a new driver, sync the registry into the database:

php artisan rconfig:integration-v2-sync-definitions

# Deactivate definitions no longer present in the registry
php artisan rconfig:integration-v2-sync-definitions --cleanup

Scheduling Automated Sync

V2 runs can be scheduled the same way as other rConfig tasks:

1. Navigate to Scheduled Tasks → Add Task.
2. Select Integration V2 Job as the task type.
3. Pick the integration instance.
4. Choose the run mode — usually Apply for a production schedule, Preview for periodic drift detection without changes.
5. Set the cron schedule.
6. Save.

The scheduled task ID is forwarded to the run via --task-id=<id> so completion notifications can fan out correctly.

Run History, Conflicts and Logs

Every run writes detailed metadata that you can inspect from the V2 UI or the database:

• integration_runs — run-level status, mode, stage, policy version, summary stats
• integration_run_stages — per-stage status, attempt count, metrics and error payloads
• integration_source_records — raw upstream payloads (for replay and audit)
• integration_canonical_candidates — normalized candidates with validation status
• integration_reconciliation_results — match tier, target device, authority trace
• integration_sync_decisions — final action and reason code per candidate
• integration_conflicts — open conflicts requiring manual resolution
• integration_device_links — long-lived links between upstream IDs and rConfig devices, with first_seen, last_seen, missing_since

The V2 UI surfaces these as Run latest, Problems and Operation logs tabs on each driver detail page.

Troubleshooting Common Issues

validate_setup fails

• Check the base URL is reachable from the rConfig server (try curl from the box).
• Disable SSL Verify Peer / Host for self-signed certs (only on internal networks).
• Confirm the API token / credentials are still active on the upstream.
• Look at the run’s stage error_payload — V2 stores the full exception chain when --debug is used.

extract returns zero records

• Run an Extract Preview with the same filters to compare results.
• Verify the API user can see the target objects (Zabbix host groups, NetBox/Nautobot tenant scope, etc.).
• Check filter operators — V2 schemas declare which operators each platform supports.

canonicalize produces invalid candidates

• Inspect integration_canonical_candidates.validation_errors for the failing field.
• Most common: missing hostname, missing primary IP, or unresolvable Device Profile slug.
• Add the missing field upstream, or attach a Device Profile.

reconcile returns ambiguous matches

• More than one existing rConfig device matched the candidate’s identity fingerprint.
• Open the run in the UI, view the candidate, and pick the correct target device. The decision becomes a conflict until resolved.

apply skips devices unexpectedly

• Check integration_sync_decisions.decision_reason_code — common codes include NO_MATCH_CREATE_CANDIDATE, MEDIUM_MATCH_REQUIRES_REVIEW, MISSING_UPSTREAM_DISABLED_LINK.
• Review the instance’s reconciliation policy and missing-upstream policy.
